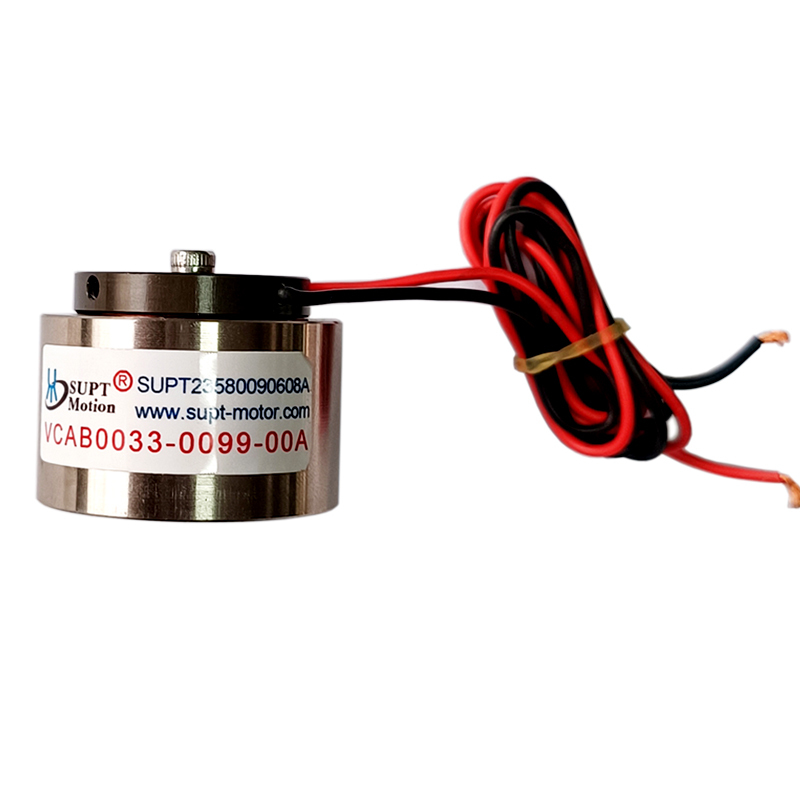

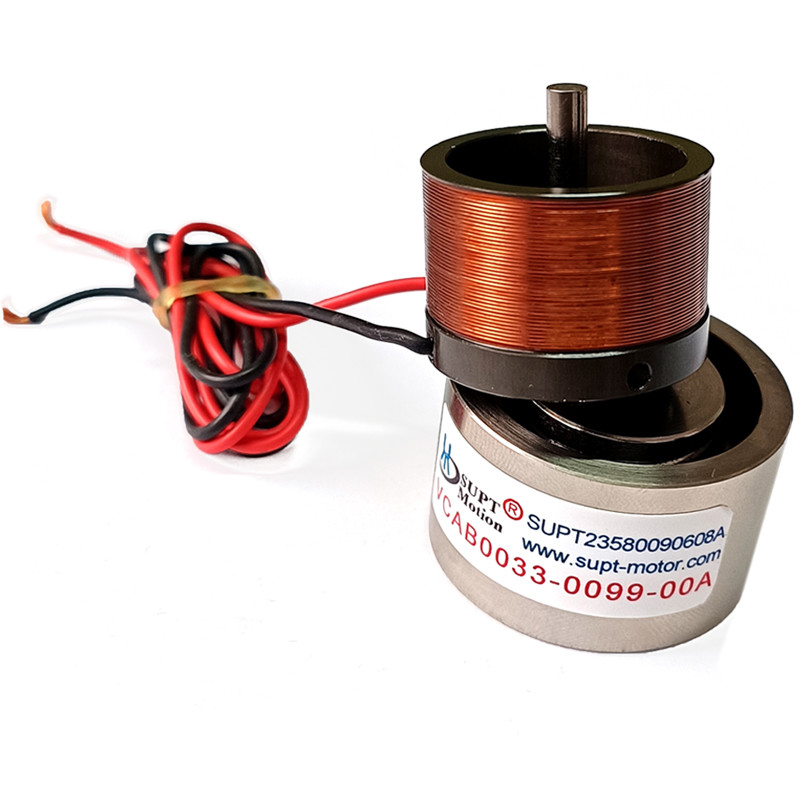

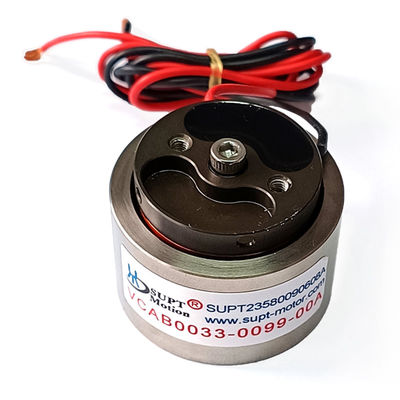

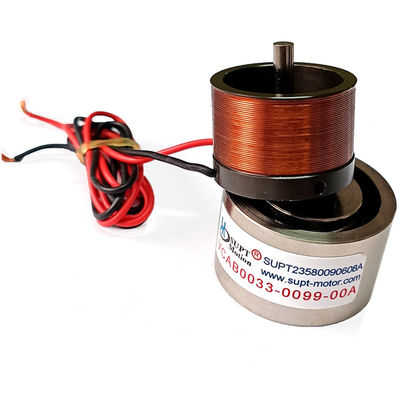

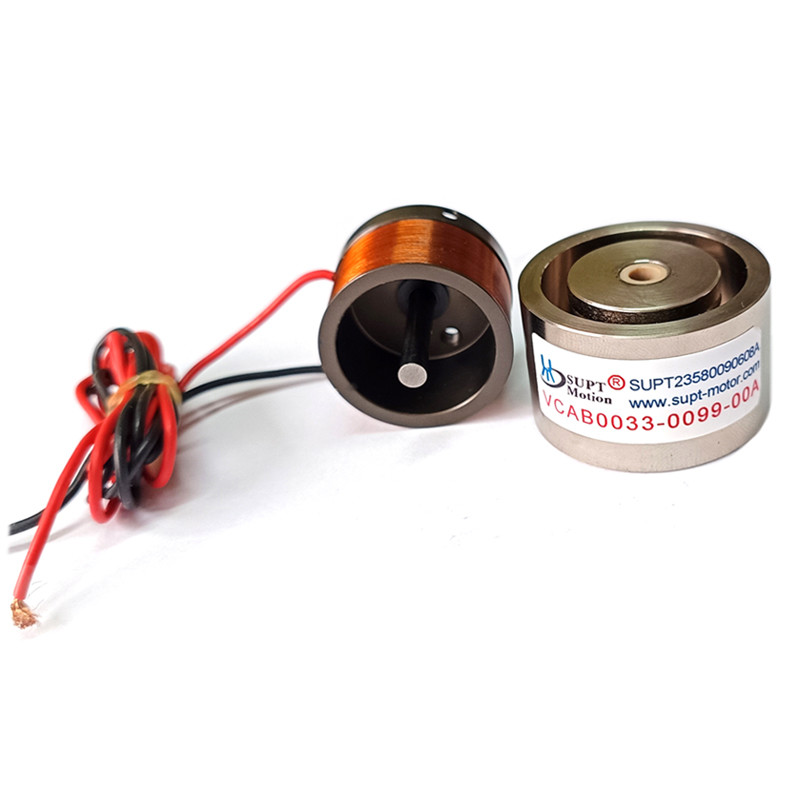

24V High Response Linear Voice Coil Motor For 3C Electronics Assembly
試供品およびクーポンのための私に連絡しなさい。
WhatsAPP:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 保証 | 3ヶ月から1年 | 製品型式 | VCAB0033-0099-00A |
|---|---|---|---|
| 体重 (g) | 5.87 | 最大力 (N) | 33 |
| 総走行量 (mm) | 9.9 | 最大電圧 (V) | 24 |
| 応用 | 自動プロダクト | 位置決めの精度 | 高い |
| 製品タイプ | 線形ボイス・コイル・モーター | 整流 | ブラシ |
| 連続力 (N) | 8N | 応用分野 | 3C エレクトロニクス、半導体、オートメーション、光学、検査装置 |
製品の説明
Product Description:
SUPT VCAB series linear voice coil motors are direct-drive actuators specifically designed for high-speed, micron-level precision motion. Featuring a coreless design, they achieve advanced performance including high frequency response, high speed, high acceleration, high precision, frictionless operation, and zero backlash. They are widely used in 3C manufacturing, visual inspection, semiconductors, medical instruments, and scientific research equipment.
Linear Voice Coil Motors have become one of the most essential precision actuators in the 3C electronics industry due to their high frequency response, ultra-precise positioning, high acceleration, and frictionless motion structure. As smartphones, tablets, wearables, and laptops continue to evolve toward thinner form factors and higher consistency, automation equipment requires micron-level accuracy and millisecond-level dynamic performance. Linear Voice Coil Motors are uniquely suited to meet these demanding requirements.
In 3C assembly processes, Linear Voice Coil Motors are widely used in high-speed pick-and-place systems, precision press-fit stations, laser welding, dispensing control, FPC alignment, camera module production, OIS calibration, and display module assembly. Thanks to their direct-drive linear force output, with no cogging, no backlash, and no mechanical transmission, Linear Voice Coil Motors provide nanometer-level positional resolution. This enables highly stable motion for tasks that require extremely fine alignment, precise press-fit depth control, or real-time trajectory adjustments.
Features:
- 9.9 mm stroke suitable for rapid short-distance motion
- High frequency response for fast inspection and micro-adjustment
- High thrust density enabling strong acceleration
- Coreless structure with zero cogging
- 24V input for easy industrial integration
- Compact and lightweight for embedded modules and fixtures
General Specifications (Varies by Model)
- Rated Voltage: 24V
- Continuous Force: 8 N
- Peak Force: 33 N
- Stroke: 5–60 mm / customizable
- Frequency Response: ≥ 100 Hz
- Repeatability: ≤1–3 µm
- Structure: Coreless coil + high-energy magnet array
- Cooling: Natural convection (air/liquid cooling optional)
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
- Precision assembly & micro-positioning
- Optical alignment modules
- Compact test machines
- Medical analysis / microfluidics
- Research laboratory stages
