Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
試供品およびクーポンのための私に連絡しなさい。
WhatsAPP:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 保証 | 3ヶ月から1年 | 製品型式 | VCAB0087-0563-00A |
|---|---|---|---|
| 体重 (g) | 177 | 最大力 (N) | 87 |
| 総走行量 (mm) | 56.3 | 最大電圧 (V) | 63.4 |
| 応用 | 自動プロダクト | スピード | 高い |
| 製品タイプ | 線形ボイス・コイル・モーター | 整流 | ブラシ |
| 連続力 (N) | 17.5N | 応用分野 | 3C エレクトロニクス、半導体、オートメーション、光学、検査装置 |
| ノイズ | 低ノイズ |
製品の説明
Product Description:

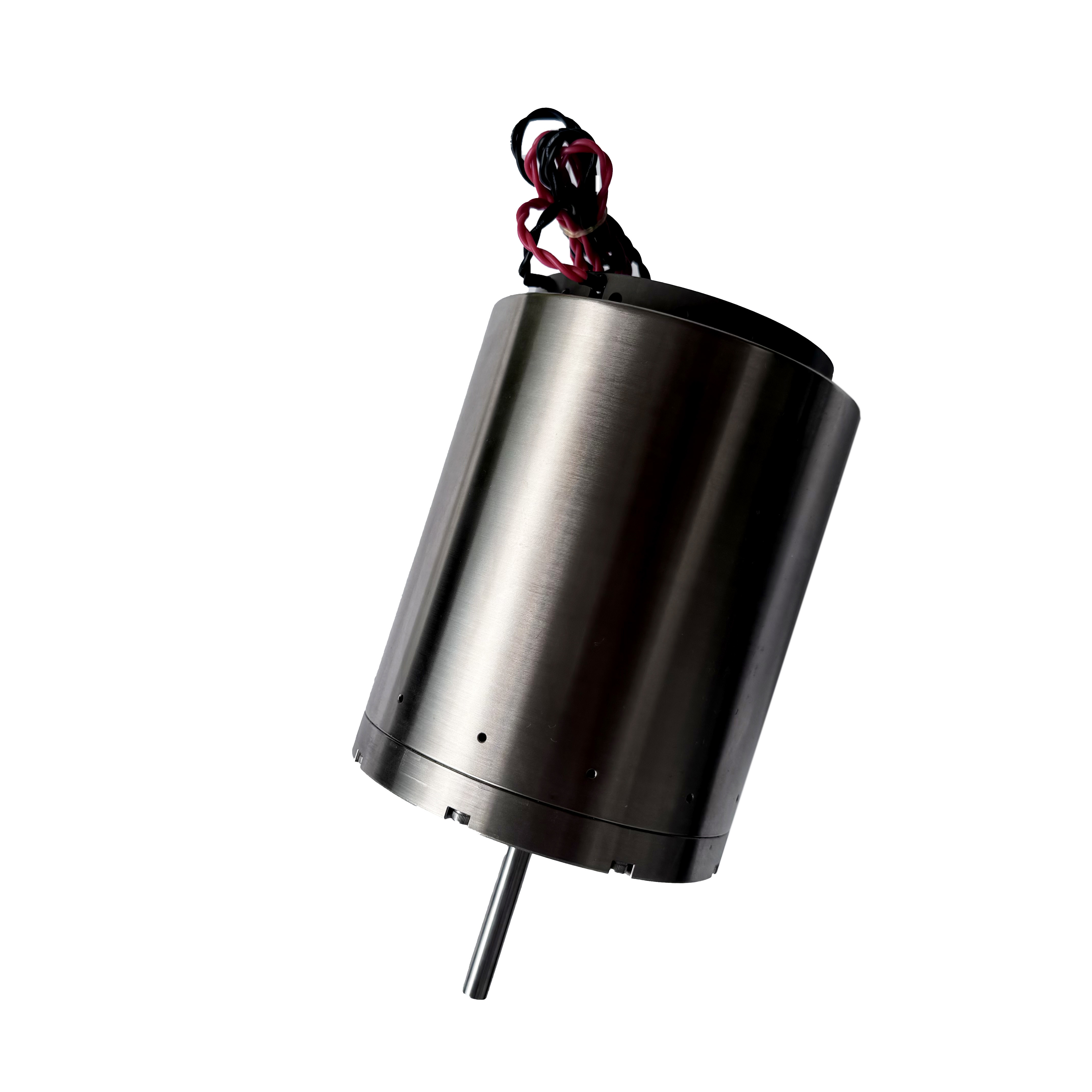

The VCAB0087-0563-00A shaft-type linear voice coil motor from SUPT adopts a moving-coilactuation mechanism combined with a precision-guided shaft and linear bearings, offering excellentstability within a compact structure. lts high-flux permanent magnet assembly creates a strongmagnetic field, enabling the lightweight moving coil to produce highly responsive and linear forceoutput with minimal inertia. This design allows the actuator to maintain outstanding dynamicbehavior during rapid acceleration, deceleration, and frequent reciprocating motion.
The Linear Voice Coil Motor, with its frictionless drive, high-frequency response, nanometer-level displacement resolution, and highly linear motion output, has become an essential actuator in modern medical scanning equipment. It is widely used in blood analyzers, CT auxiliary positioning units, confocal scanners, endoscope autofocus modules, and ultrasound probe scanning mechanisms, enabling fast, silent, contact-free, and highly repeatable micro-positioning performance.
Features:
- Frictionless Direct-Drive Architecture
- Ultra-Precise Micro-Positioning (Nanometer Resolution)
- Ultra-Low Noise Motion
- Millisecond-Level Fast Response
- Supports Closed-Loop Position / Force Control
Technical Specifications :
Stroke:56.3mm
Continuous Force:147.6N
Peak Force:87N
Force Constant:8N/A
Resistance:35.2Ω
Mass:good
Dimensions:200*400*400cm
Working Current:1.8A
Product Parameters:
| Product Model | Peak Force (N) |
Continuous Force at 25℃(N) |
Total Stroke (mm) |
Max Voltage (V) |
Back EMF Constant (V/m/s) |
Weight of the coil (g) |
Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
Applications:
- Confocal Optical / Laser Scanners
- Endoscope Autofocus Units
- Hematology Cell Scanners
- Ultrasound Probe Scanning Mechanisms
- Medical Lab Micro-Positioning Stages
- CT / X-Ray Positioning Units
